The full Monty

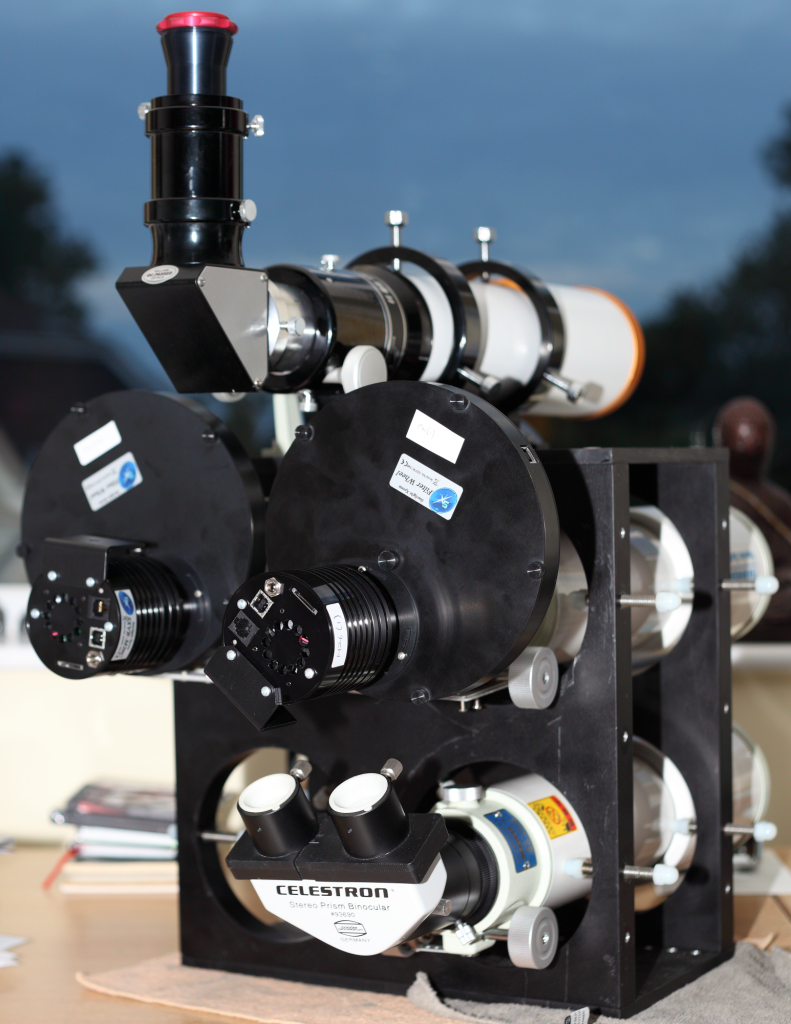

Here is the mini-WASP framework as fully-populated as I can manage it ready for installing into the dome this weekend.  The Starlight Xpress cnnectors between the filter-wheels and the Sky 90s arrived promptly this morning (thank you Gill Hattey!) and I fitted them straight away.  The M26C cameras sit nicely on the back of the filter wheels with a sufficient stand-off from the wheels to be able to get at the collimation screws.  And the unexpected added bonus?  The metal back distance is only spot-on that’s all :)   Pig in clover day today :) :)

Share and Enjoy:
  • Digg
  • StumbleUpon
  • Facebook
  • Reddit
  • Slashdot
  • del.icio.us
  • Mixx
  • Google Bookmarks
  • Live
  • Sphinn
  • LinkedIn
  • Technorati
  • Yahoo! Buzz

This entry was posted on Tuesday, July 12th, 2011 at 9:30 pm and is filed under mini-WASP Array, Projects. You can follow any responses to this entry through the RSS 2.0 feed. You can leave a response, or trackback from your own site.

6 Responses to “The full Monty”
  1. Tom How says:
    July 13, 2011 at 11:11 am

    That looks splendid. Suggest you do some rotations to try and get the two cameras at exactly the same angle to aid stacking/mosaicing.

  2. Greg Parker says:
    July 13, 2011 at 11:21 am

    Now why didn’t I think of that :)

  3. Tom How says:
    July 13, 2011 at 12:13 pm

    I’m no visual expert, but aren’t you going to head-butt the camera when looking down the bino-thingy?

  4. Greg Parker says:
    July 13, 2011 at 12:28 pm

    Yes if I didn’t rotate it a bit to the right :) It’s also not at focus so will be “out” more.

  5. Dave Adshead says:
    July 14, 2011 at 1:13 pm

    I’m really looking forward to your first light posting. Clear skies.

    Regards
    Dave

  6. Greg Parker says:
    July 15, 2011 at 8:34 am

    Thank you Dave. Once I get the power in it should move along pretty quickly :)
    Greg
